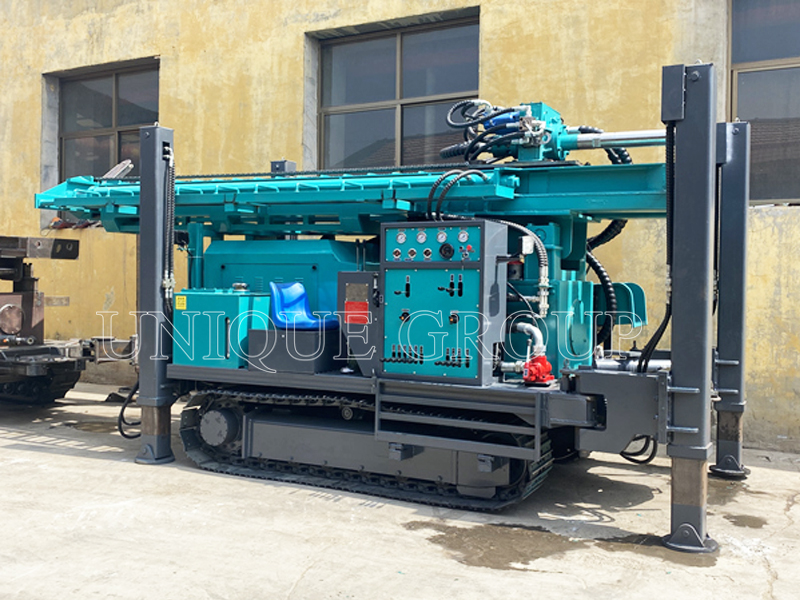

UY400 Water Well Drilling Rig Machine
2024-12-10 16:15:59
Main parameters of UY400 water well drilling rig machine:
Drilling Diameter of hole: 140 – 330mm(DTH), 115-400mm(Rotary)
Max Drilling Depth: 400m (for 10 inches DTH drill)
One time advancing length: 6.6 m.
Engine power: 92kw (Yuchai brand)
Working Pressure: 1.7-3.4 Mpa.
Air Consumption: 17-36 m3/min.
Rotation Speed: 66-135 rpm
Swing Torque: 6500-9000 N•m
Lift power: 10Tons
UY400 water well drilling rig is an efficient and multifunctional underground water well drilling equipment, which can be used for drilling water wells, agricultural irrigation wells, geothermal wells and other types of wells. It is especially suitable for water extraction projects in mountainous areas and rock formations.
