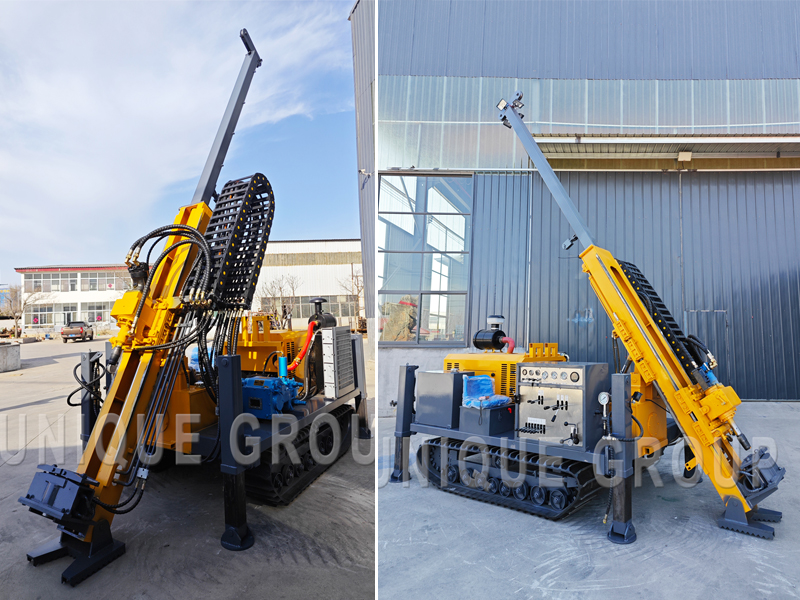

UYX Full Hydraulic Core Exploration Drill Rig
The UYX Full Hydraulic Core Exploration Drill Rig is launched by Zhengzhou UNIQUE Group and is a high-performance drilling equipment. It is suitable for obtaining underground material samples, such as solid mineral deposit exploration, engineering geological survey, oil, natural gas and groundwater drilling. The drilling rig can operate efficiently in various terrains and has excellent stability and reliability.
Main features
Crawler chassis: equipped with wireless remote control crawler chassis, which can adapt to various complex terrains and ensure safety during operation.
Frame: The welded structure frame provides excellent stability and drilling rigidity.
Slide: Using hot-rolled carbon channel steel and square steel, the oil cylinder controls smooth lifting and lowering to ensure the accuracy of drilling.
Drilling tower: equipped with a ground-touching base to enhance drilling stability and improve drilling results.
Rotating mechanism: mechanical two-speed plus stepless speed regulation design, advanced structure ensures flexibility and efficiency during drilling.
Propulsion mechanism: oil cylinder chain double speed feeding mechanism, stable and reliable operation.
Hydraulic clamp: simplifies the clamping and disassembly process of drill pipe and improves work efficiency.
Hydraulic winch: can flexibly lift drilling tools or auxiliary tools to increase the convenience of operation.
Hydraulic legs: four hydraulic legs can be quickly leveled and equipped with hydraulic locks to prevent equipment creep.
Control panel: centralized control of all functions, easy operation, and improved comfort.
Hydraulic system: fully hydraulically driven, with load-sensitive control to improve operational stability.
Power system: equipped with diesel engines from large manufacturers to ensure high-quality after-sales service across the country.
Cooling system: a combination of air cooling and water cooling systems to ensure stable operation of the equipment.
Core drilling is a vital part of mineral exploration. By sampling and analyzing cores, we can gain in-depth insights into the potential of mineral deposits and rock formations. Modern core drilling rigs meet a variety of drilling needs with their efficient sampling capabilities, greatly improving exploration productivity and helping global customers achieve their profit goals.
